Product Description:

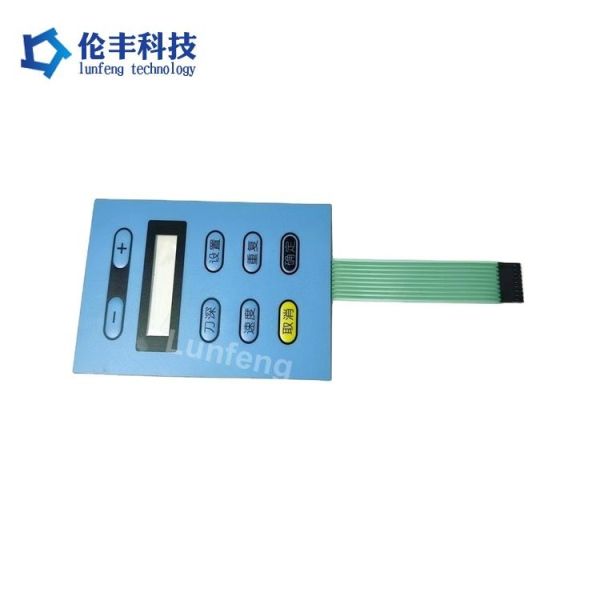

The Flat Membrane Switch is a highly reliable and versatile input device designed for a wide range of applications. Featuring a printed circuit with silver or carbon ink, this switch combines advanced technology with durable materials to ensure optimal performance and longevity. The use of high-quality printed circuits allows for precise and consistent electrical connections, making the Flat_Membrane_Keypad an excellent choice for both industrial and consumer electronics.
One of the standout features of this Flat_Membrane_Switch is its IP65 ingress protection rating, which is available as an optional enhancement. This means the switch is resistant to dust and water jets, making it suitable for use in harsh environments where exposure to moisture or contaminants is a concern. Whether installed in medical devices, industrial machinery, or outdoor equipment, the Flat_Membrane_Panel maintains its functionality and reliability even under challenging conditions.
Quality assurance is a top priority for this product, with each Flat_Membrane_Keypad undergoing 100% testing before it reaches the customer. This rigorous testing process ensures that every switch meets strict performance and durability standards, providing peace of mind and reducing the risk of failure in critical applications. The commitment to quality makes this membrane switch an ideal solution for applications where reliability is paramount.
The switch features an actuation force of 160-180 grams, striking a perfect balance between tactile feedback and ease of use. This actuation force ensures that users receive a clear and responsive feel when pressing the keys, enhancing user experience without causing fatigue during extended operation. The consistent actuation force across the Flat_Membrane_Switch contributes to uniform performance and user satisfaction.
Additionally, the Flat_Membrane_Panel offers flexible pitch options of 1.0mm, 1.25mm, and 2.54mm, catering to various design requirements and enabling seamless integration with different electronic components and systems. This versatility in pitch selection allows designers to optimize the layout and functionality of their devices, whether for compact handheld equipment or larger control panels.
Constructed with precision and attention to detail, the Flat_Membrane_Keypad is ideal for applications that demand a combination of durability, reliability, and aesthetic appeal. Its slim profile and lightweight design make it suitable for modern electronic devices where space-saving is crucial. Moreover, the ability to customize the printed circuit with silver or carbon ink offers options for different electrical characteristics and cost considerations.
In summary, the Flat_Membrane_Switch is a high-quality, customizable, and robust solution for various input needs. Its printed circuit technology with silver or carbon ink, optional IP65 ingress protection, comprehensive 100% quality testing, actuation force of 160-180g, and flexible pitch options make it a top choice for manufacturers seeking dependable membrane switch technology. Whether used as a Flat_Membrane_Keypad for consumer electronics or as a Flat_Membrane_Panel in industrial applications, this product delivers consistent performance and long-lasting service.
Technical Parameters:
|
Colors
|
Pantone/ RAL Color, Purple, White
|
|
Operating Temperature Range
|
-20°C To 70°C
|
|
Mounting Method
|
Surface Mount Or Panel Mount
|
|
Quality
|
100% Tested
|
|
Keys
|
Tactile And Non-tactile
|
|
Driver Voltage
|
3V, 3.3V
|
|
Window
|
Red Transparent Window
|
|
Ingress Protection
|
IP65 (optional)
|
|
Connector Brand
|
ZIF Connector Or Female Connector
|
|
Actuation Force
|
160-180g
|
Applications:
The Lunfeng Flat Membrane Switch, available under the trusted brand name Lunfeng or OEM, is an ideal solution for a wide range of application occasions and scenarios. Certified with ISO9001:2015, this product guarantees high quality and reliability, making it suitable for various industrial and commercial uses. Its versatile design allows it to be used as a Flat_Membrane_Interface, Flat_Membrane_Panel, or Flat_Membrane_Keyboard, meeting the specific needs of different devices and equipment.
One of the primary application occasions for the Lunfeng Flat Membrane Switch is in industrial control systems where tactile and non-tactile keys are essential for user input. The keys, featuring a pitch of 1.0, 1.25, or 2.54mm and an actuation force of 160-180g, provide excellent feedback and durability even under frequent use. This makes the Flat_Membrane_Interface suitable for machinery operation panels, automation equipment, and control consoles where precision and reliability are paramount.
In consumer electronics, the Flat_Membrane_Keyboard version of this product is widely used in remote controls, medical devices, and handheld instruments. Its compact and slim profile allows for easy integration into devices requiring a responsive and durable input method. The operating temperature range of -20℃ to +80℃ ensures stable performance in various environments, from cold storage facilities to warm indoor settings.
The Flat_Membrane_Panel is also popular in automotive and home appliance industries. With customizable color options, including Pantone, RAL colors, as well as purple and white, these panels can be tailored to match branding or aesthetic requirements. Packaging is handled flexibly, using PE bags, cartons, or according to customer requests, ensuring safe delivery and convenience.
Minimum order quantity is just 1 piece, making it accessible for prototyping or small-scale production. Pricing is based on design specifics, allowing clients to get tailored solutions without unnecessary cost. Payment terms are straightforward, requiring T/T 100% before shipment, and delivery time is to be discussed to meet customer scheduling needs.
Overall, the Lunfeng Flat Membrane Switch product line is highly adaptable, reliable, and designed to perform well in diverse scenarios, including industrial controls, consumer electronics, automotive interfaces, and medical equipment. Its combination of quality certification, customizable design, and robust performance makes it a preferred choice for anyone seeking a dependable Flat_Membrane_Interface, Flat_Membrane_Panel, or Flat_Membrane_Keyboard.
Support and Services:
Our Flat Membrane Switch product is designed to offer reliable and durable performance in various applications. For technical support, please ensure that you have the product model number and details of the issue ready when seeking assistance.
We provide comprehensive services including product installation guidance, troubleshooting, and maintenance tips to maximize the lifespan and functionality of your membrane switch.
If you encounter any issues with the Flat Membrane Switch, our support team can help diagnose problems related to connectivity, responsiveness, or physical damage.
We also offer repair and replacement services under the product warranty terms. For optimal results, follow the recommended cleaning and handling procedures outlined in the user manual.
For additional resources, please refer to the product datasheets, user manuals, and FAQs available on our official website.
