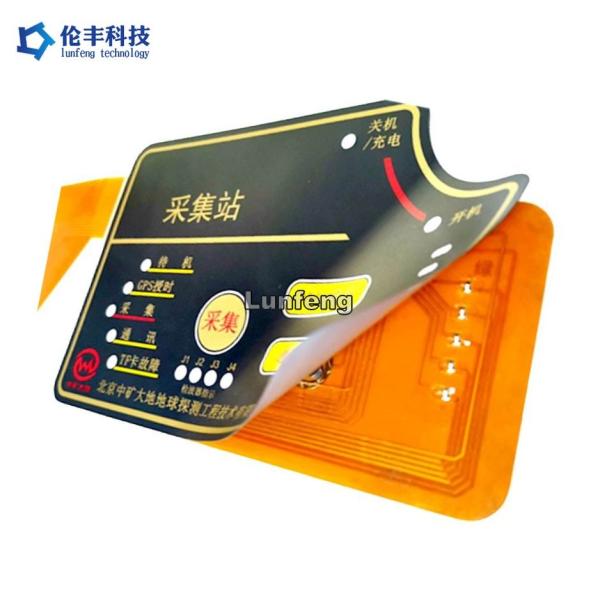

Polyester Custom Membrane Switch Pad For Detecting Instrument

  • 1
  • 2
  • 3

Brand Name : Lunfeng/Customer's brand

Model Number : LFZDX084

Certification : ISO9001:2015, SMETA 4P

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 piece

Price : depending on the design

Payment Terms : TT/telegram transfer

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : normally 2-4 weeks, can be discussed

Packaging Details : PE bag/foam/carton, as customer's request

Material : PET, Polyester(PET), 0.188 mm glossy PET

Rear adhesive : 3M467 468

ColorS : Pantone/ RAL color, black, orange, gray, yellow

Feature : matte surface, SILVER circuit cable

Connector : 2.54mm Pitch, ZIF connector, two tails

Key : Embossed keys metal domes,

LED : NO Leds, NO LGF film

Window : NO LCD window, NO punch holes

Contact Now

Custom Metal Dome Membrane Switch, Membrane Switch Pad For Detecting Instrument

  • Membrane switch is an operating system that integrates key functions, indicating elements and instrument panels. It consists of four parts: panel, upper circuit, isolation layer and lower circuit. When the membrane switch is pressed, the contacts of the upper circuit are deformed downward, and are in contact with the pole plate of the lower circuit. After the finger is released, the contacts of the upper circuit bounce back, the circuit is disconnected, and the circuit triggers a signal.The membrane switch has strict structure, beautiful appearance and good sealing performance.

    We are a Membrane Switch Manufacturer engaged in Membrane Switches, Membrane Panels, soft circuits, silicone buttons, rubber, nameplate labels, LED Backlight Membrane Switches, EL cold light sheet backlight membrane switches, LGF light guide membrane switches, optical fibers Membrane Switch, Capacitive Membrane Switch.All kinds of customization, welcome to come to consult.


Applications:

  • home appliances and device
  • Security Protection systems with Cipher Code
  • Various industry control keypad panel
  • consumer electronics and 3C item
  • Thrapy medical system and device
  • Various automtic machine control keypad
  • Telecommunication Equipment
  • Medical Equipment
  • Industrial Equipment
  • Household Equipment
  • Remote Controller
  • Control system

Our Advantage:

  • We Focus in membrane switch and related items.
  • Strong R&D capability
  • Stable in quality
  • Competitive price
  • Short Lead time for samples and Mass production
  • Whole solution design available
Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch

0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm

0.5mm, 1.0mm,1.27mm, 2.54mm

1. Electrical Properties Membrane Switch
Electrical Level: 35V(DC), 100mA,1W
Contact Resistance: 10Ω~500 Ω
Insulation Resistance: 100MΩ/100V
Dielectrics Voltage-resistance: 250VRms(50~60Hz 1min)
Chattering Time: ≤ 5ms
Life Time: Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding: R>1,180
2. Mechanical Properties
Operating Force: Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke: Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm
3. Environmental and Storage Conditions
Operation Temperature: -40°C ~ +80°C
Storage Temperature: -40°C ~ +80°C
Humidity: 40°C, 90%~95%, 240 hours


FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
